I'll see if I can find them.
Sit. Rep.
Detailed update to follow, intermediate question:
When I spoke with Weber, they were adament that the grill I have is a Natural Gas model based on the serial number.
Now I'm looking at my burners and they all seem a bit high/aggressive including the side-burner with very little granularity between the low and the high setting. Also the propane tank weighing device faces backwards when installed.

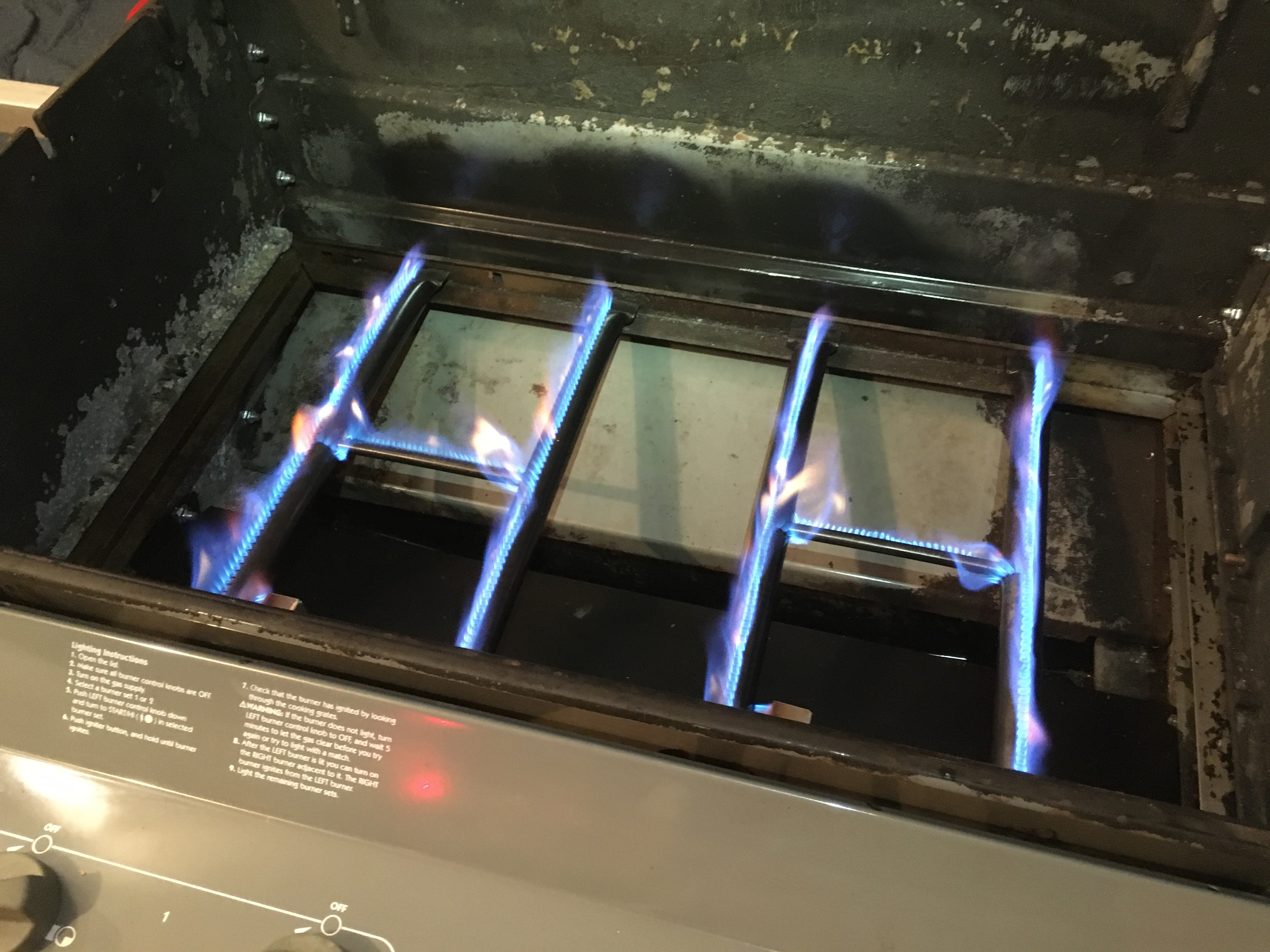

Pictures of supposedly "low" and "high":
Does this seem correct? I did dismantle, clean, and re-lube the dials (I used dielectric grease). So far no indication of leaking.
Detailed update to follow, intermediate question:
When I spoke with Weber, they were adament that the grill I have is a Natural Gas model based on the serial number.
Now I'm looking at my burners and they all seem a bit high/aggressive including the side-burner with very little granularity between the low and the high setting. Also the propane tank weighing device faces backwards when installed.
Pictures of supposedly "low" and "high":
Does this seem correct? I did dismantle, clean, and re-lube the dials (I used dielectric grease). So far no indication of leaking.
LMichaels
TVWBB 2-Star Olympian
Someone may have jerry rigged it, or someone may have actually done a true conversion. Back in the day Weber sold the parts at their dealers to change the manifolds out. But the symptom you describe is of someone who simply tried to swap orifices for LP onto a NG manifold and usually the result is what you see
So a classic symptom of a poor conversion?
What do I need to do this properly?
I checked the sticky, and I found the propane manifold is part #: 82626.
Weber OEM Propane Manifold Assembly
Qty. 1 x Weber OEM Propane Manifold Assembly • For use with propane models only • Designed with 4 main burner valves & orifices • Mounting hardware & installation sheet included
www.grillspot.com
Last edited:
John-NY
TVWBB Pro
Oh, I thought swapping the orifices was “the way” to convert a NG manifold to LP, or vice versa. Are you saying the actual manifold itself could be different?
HOW TO: Gas Conversion
Over the past few years, we have seen more and more people refurbishing vintage Weber gas grills, and along with this comes an increasing number of questions about gas conversion between liquid propane (LP) and natural gas (NG). In the old days, Weber would sell you the parts needed to convert...
tvwbb.com
Steve Hoch
TVWBB Hall of Fame
It sure sounds like someone did an orifice swap on it. The backwards facing tank scale is a pretty solid clue as well.
When I cleaned/lubricated the dial assemblies, it actually looked like the natural gas orifices based on this picture:
So maybe someone did a conversion without swapping the orifices. Would a simple orifice swap work, or do I really need the propane manifold?
John-NY
TVWBB Pro
Ahhh, so it could be a difference in the valves too it sounds likeHOW TO: Gas Conversion
Over the past few years, we have seen more and more people refurbishing vintage Weber gas grills, and along with this comes an increasing number of questions about gas conversion between liquid propane (LP) and natural gas (NG). In the old days, Weber would sell you the parts needed to convert...
If my 1st Gen Summit curb pickup is actually originally NG and someone put an LP hookup on it I’m gonna be very sad. Won’t know until I see the orifices I guess
Steve Hoch
TVWBB Hall of Fame
That's how I should have phrased it. The answer to your question is I don't know. It seems there haven't been too many success stories on swapping the orifices because the valves are often different as well.When I cleaned/lubricated the dial assemblies, it actually looked like the natural gas orifices based on this picture:
So maybe someone did a conversion without swapping the orifices. Would a simple orifice swap work, or do I really need the propane manifold?
LMichaels
TVWBB 2-Star Olympian
In most cases on a Weber the valves themselves are different so you will need an entire manifold for the fuel you want to run. The condition you have at least is not "dangerous" but, if you had an LP someone tried pulling this off on with orifices only you could have flameouts and so on. Which could be dangerous. It's what happens when people watch YouTube and then believe the lies
And the damn thing is leaking propane -_-
I had tested it in the garage while putting it back together, sprayed soap and water, thought I took care of all the potential leaks, now I had it attached and smelled the distinct smell of propane (technically whatever it is they put in propane)
Going to have to check agian.
I had tested it in the garage while putting it back together, sprayed soap and water, thought I took care of all the potential leaks, now I had it attached and smelled the distinct smell of propane (technically whatever it is they put in propane)
Going to have to check agian.
Eric-NH
TVWBB Pro
Bummer, hope it's something easy!
I've ordered the replacement manifold and tank scale from grillspot.com
The guy on the phone couldn't tell his head from his *** (I'm pretty sure he was in a part of the country where marijuana has been "legalized"), so hopefully the order actually goes through.
I'll sell the existing manifold (after finding any potential leaks) and tank scale somewhere online, assuming someone might be interested.
I'm at least $500 into this behemoth and more hours and stress than it was worth, but at this point teutonic stubborness and sunk cost fallacies are taking over. I'll make a thorough update once I'm finished.

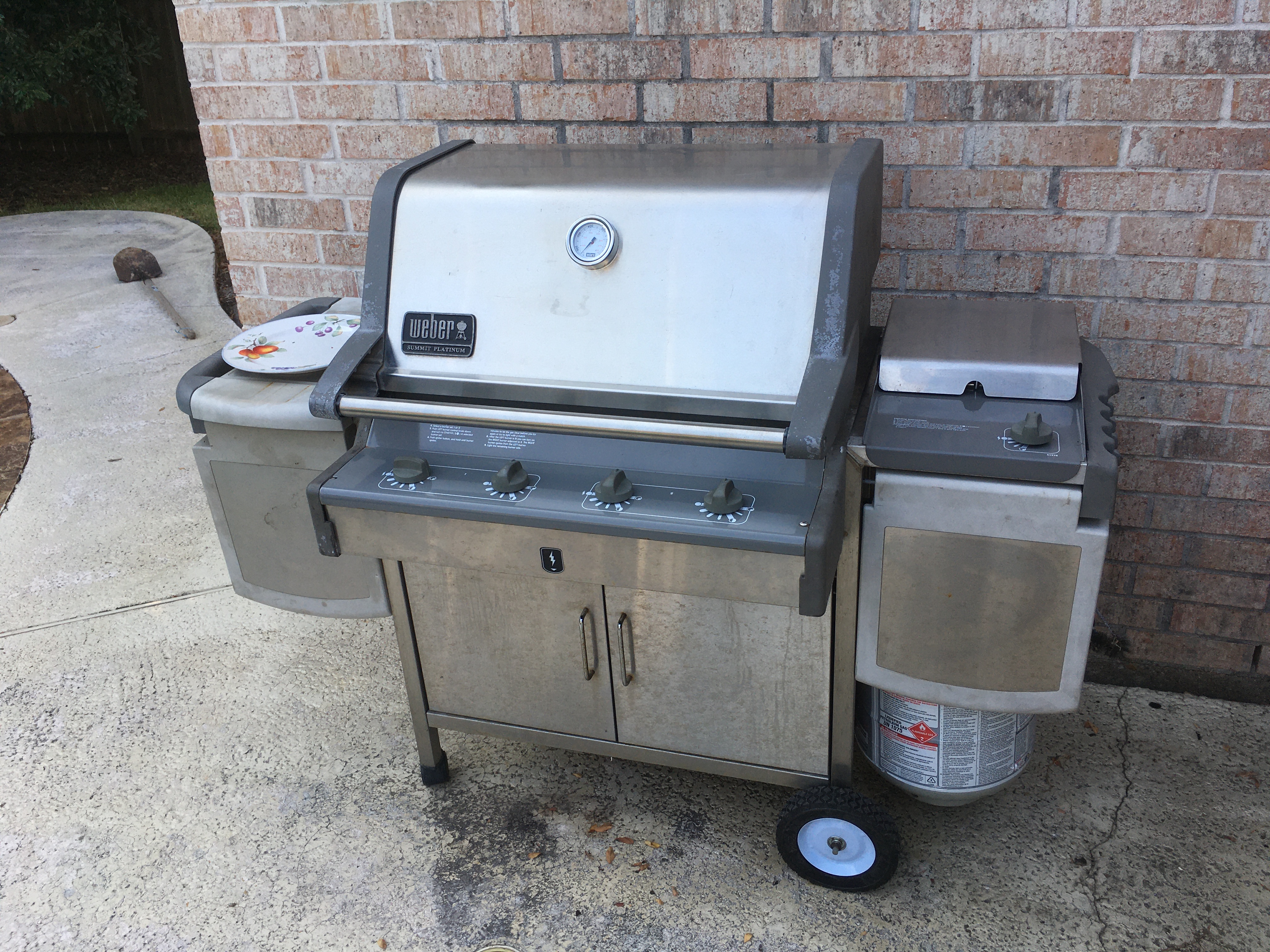

It does look good though:
The guy on the phone couldn't tell his head from his *** (I'm pretty sure he was in a part of the country where marijuana has been "legalized"), so hopefully the order actually goes through.
I'll sell the existing manifold (after finding any potential leaks) and tank scale somewhere online, assuming someone might be interested.
I'm at least $500 into this behemoth and more hours and stress than it was worth, but at this point teutonic stubborness and sunk cost fallacies are taking over. I'll make a thorough update once I'm finished.
It does look good though:
