Rocker switch




SeanWinter

TVWBB Member
Hey fellas, long time since I posted on here.... I just picked up this grill for free! Couple things I’m looking for and having a little trouble. First is the rocker switch for the side burner, second is the front panel that has rust on it in the picture. I’ll get better picks when I get home. 0199FF95-9487-4F15-A366-346F3BFCCD9E.jpeg


Kelly C

TVWBB Pro
Great find! Congratulations on getting an awesome grill. I don’t have those parts but hope others on here do. Enjoy it!


Bruce

TVWBB 1-Star Olympian
Nice find. A blue head Genesis 3??
You seem to be missing the left hand swing table as well.


SeanWinter

TVWBB Member
I’ve got a box of parts that included the side table, I just need to sort it all out and see what’s missing. You guys are awesome btw for keeping all these cool old grills alive!


Steve Madden

TVWBB Super Fan
Nice find. A blue head Genesis 3??
You seem to be missing the left hand swing table as well.
I would agree. Genesis 3 LP. I’ve been working on restoring one. This is when I brought it home.


Bruce would know better than me but I would imagine that rocker switch is the same as a number of other models.


Ed P

TVWBB Emerald Member

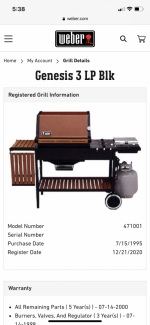

Not sure why you have that 4730927 outlined (I have the same number on an earlier grill and I think it may be the p/n of the certificate itself), but I think yours may be earlier than 1995 because (1) the propane level indicator arm is on the right side of the cart leg, not the left, and (2) yours does not have casters, which were reserved for the higher end models in the early days.


Attachments

  • Tank Support.png
    Tank Support.png
    1.5 MB · Views: 5

Bruce

TVWBB 1-Star Olympian
Some thing is wrong there. The Genesis 1-5 gave way to the Genesis 1000-5000 well before 1995. The only thing I can think of is the grill you looked up on Weber.com was purchased (registered) several years after it was built.

Besides, after 1993, weber went to the "AUTHORIZED" date coding system.

Yes, those igniter switches were used on the Genesis 1000 grills and most of the Silver B grills. Very common.


Ed P

TVWBB Emerald Member
Also, if you look underneath the cookbox in the front, there is a casting date that will give you a clue.


Attachments

  • Cookbox Bottom Casting Date.png
    Cookbox Bottom Casting Date.png
    1.1 MB · Views: 4

Bruce

TVWBB 1-Star Olympian
The 1988 is just the date for the certification code. That could be any year prior to the actual manufacture date, but probably not by a whole lot. I would guess late 1988 to about 1992.


Steve Madden

TVWBB Super Fan
Not sure why you have that 4730927 outlined (I have the same number on an earlier grill and I think it may be the p/n of the certificate itself), but I think yours may be earlier than 1995 because (1) the propane level indicator arm is on the right side of the cart leg, not the left, and (2) yours does not have casters, which were reserved for the higher end models in the early days.
Thanks Ed. It was highlighted because I sent that picture to Weber to find out what it was. The customer service rep I got through to had no idea.


Chris Binny

TVWBB Fan
I'd say definitely a 3000, from pictures I've seen here the OG Genesis do not have that rocker switch bracket framing the switch on the panels.


Richard in NS

TVWBB Wizard
As Bruce said they changed to the “AUTHORIZED” date code system in 1994 but up until then they used the same date letters as the kettles if I am not mistaken. Correct me if I am wrong.


Bruce

TVWBB 1-Star Olympian
That could be, but in 1993 they used even a different SN system. My Genesis 1000 starts with KL1. The K is for USA, the L is for LP, and the 1 is for 1000.


Richard in NS

TVWBB Wizard
I did some more looking Bruce and I am sure you are right. The article I read seems wrong as there is another one I found that says there was no date codes on the early Genesis grills and I am sure Chris would have verified it was correct.



Bruce

TVWBB 1-Star Olympian
Yah, anything before 1993 gets really murky if there is even a way to get a date out of the serial number at all.
