+1 from me. I just put it together this weekend. It power up and the one probe I tested seemed to work. Man I was so happy to see that LCD screen light up. Now I just need to make a wire for the fan(BTW is there a picture or directions for this or am I making it too hard?), and a mount for the BGE then figure out what to test smoke!
Jonathan CY
New member
+1 for me. I'm using it on a BGE as well. I purchased a fan with the BGE adapter from http://www.auberins.com/. It fits perfect. I purchased two DC adaptors intending to solder the DC female instead of the RCA, but the orientation is wrong. I ended up making an adapter with one end, RCA and the other DC female. Works.
Mark Vaughn
New member
+1 for me. I'll be using it on my UDS. My next step is to design and print a bracket for the blower fan. Following Brian's assembly instructions made construction very easy. It worked the first time I fired it up.
+1 makes 93. After debugging my display, I now have my second HM working.
The next one I am going to move to a 3.3 V display with a SPI interface, thereby removing IC3 and possibly removing the expensive 5V interface, and go from 12v directly to 3.3v with a different LDO regulator.
The next one I am going to move to a 3.3 V display with a SPI interface, thereby removing IC3 and possibly removing the expensive 5V interface, and go from 12v directly to 3.3v with a different LDO regulator.
+1 for me. I'll be using it on my UDS. My next step is to design and print a bracket for the blower fan. Following Brian's assembly instructions made construction very easy. It worked the first time I fired it up.
Gotta say that you did some really nice soldering work on your board.
Nick Steele
New member
+1
Just finished mine tonight. It was my first time soldering a PCB from scratch so it was a little getting used to. Once I figured out the proper bending of the resistors with the needle nose it started to go much faster. I started at 9:30pm and finished the HeaterMeter 4.0 board at 12:30. Then after that I had to figure out how to get the blower hooked up. The RCA Jack didn't come in as it was back ordered from DigiKey. I created a lead wire with RCA Jack and soldered to J4 for the blower. I then mounted the button without a spacer by setting it in the PCB with out forcing it. I laid it flat and leveled the top of the button and the tips of the LEDs with the table because USPS won't have my case here until tomorrow and I wanted to get ahead of the game. After I soldered all components down I went to mount the Raspberry Pi. I was going to try and boot it up before taking off the Composite Video jack, but I was getting a case and needed to remove and it was a super tight fit and I didn't want to mess with my 5v regulator. I proceeded to de-solder the Composite video jack and realized that that was the part I was missing for the fan plug! After I got that out I removed my lead wire I made, soldered in the composite jack from the RPi. Everything looked good. I then flashed the SD Card and inserted into the RPi. I read the part about not doing the 12v right away, but I figured if I screwed it up I was just going to blow up the RPi anyway (Maybe I could have just plugged in the heatermeter) But also if I blew it up my night would have been ruined anyway. So trusting my working and doing a quick inspection with a loop I plugged in the 12v supply. After about 20 seconds the LCD was lit and it was reading the ambient temp sensor. I plugged in the Ethernet cable and all was well.
I am moving on to the fan mount, run a test with the Big Green Egg and get prepared to cook a prime rib tomorrow while I drink cocktails on the boat! Thank you everyone who has contributed to this project, and special thanks to Tom for shipping out my case so quickly. I can't wait to post some pictures of the final product and a success story of my cook (after I tune the loop).
Nick

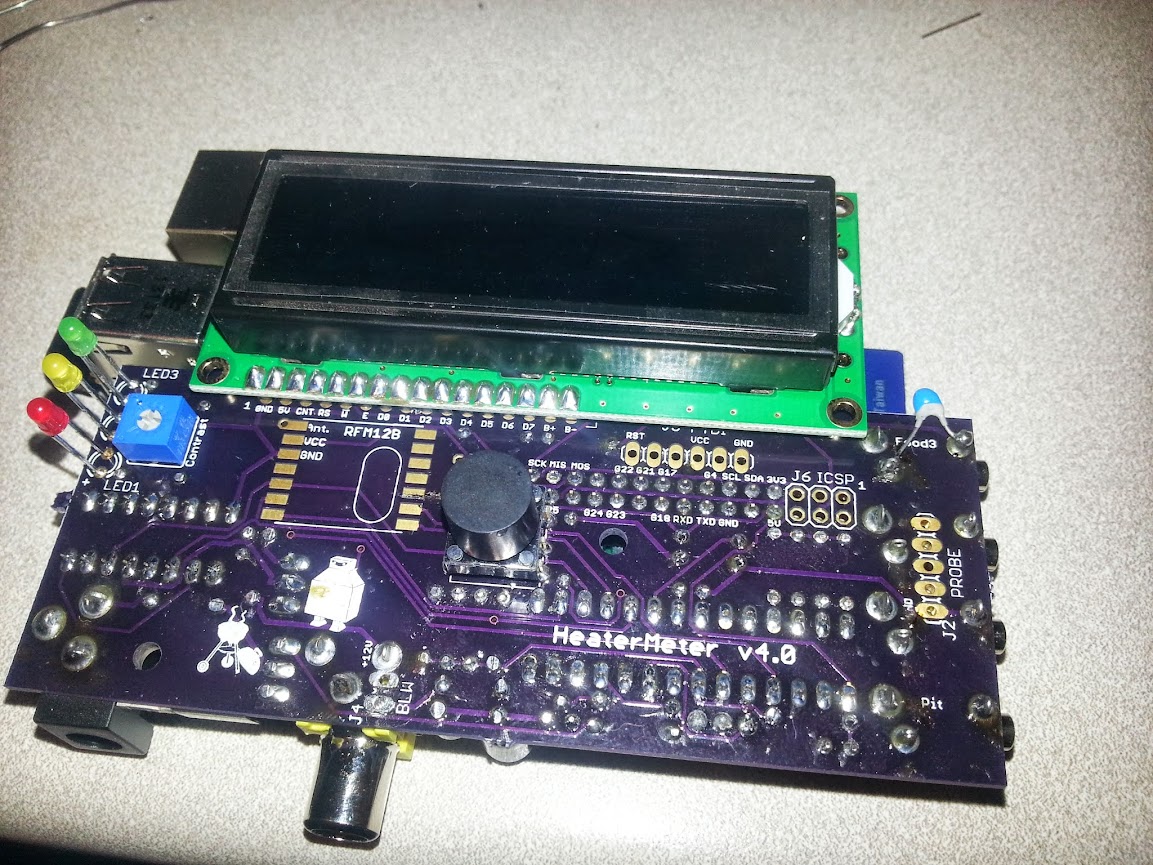

https://lh3.googleusercontent.com/-...yxBu5ii9sZ4/w1153-h865-no/20130720_015504.jpg
